Standard press seal

with stepped variable super segmented ring technology

HSD SSG

Standard press seal - with stepped variable super segmented ring technology
USP
  • Visual and physical installation control thanks to integrated inspection opening

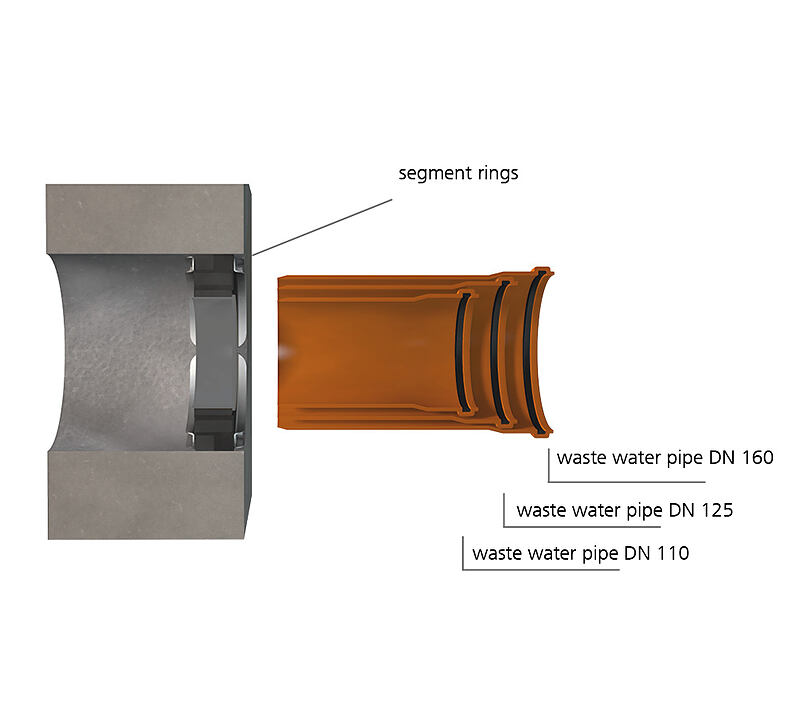

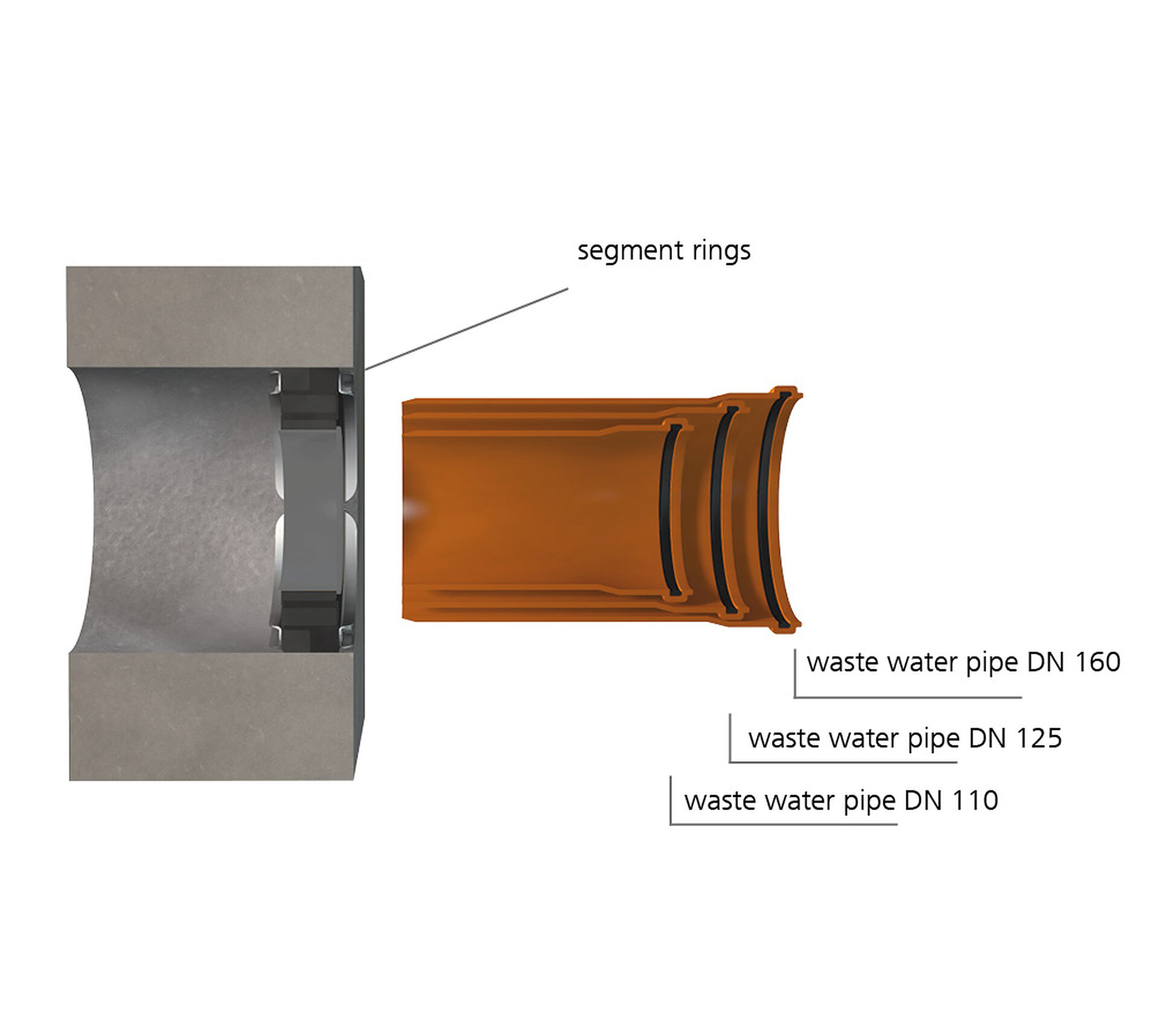

  • integrated super segmented ring technology for individual adjustment to cable/pipe diameter on site
  • Segments with diameter marking
For sealing new or already installed pipes in core drill holes or wall sleeves. Can be adapted to the most common cable diameters on site.
Standard press seal - with stepped variable super segmented ring technology
Data is sent to YouTube when the videos are played. The data protection statements of YouTube and Hauff-Technik apply.

Facts

Advantages:

  • Split as standard Ø 100 mm
  • Can be split on site at and above Ø 150 mm for retrofit installation
  • Different material combinations available for customised applications
  • available from stock

Dimensions:

  • Sealing width: 40 mm

Properties:

  • FHRK-certified
  • U-profile: maximum stability for press segments

Application range:

  • Waterproof concrete stress class 1 and 2

Material:

  • Press plates, screws and nuts: rust-free stainless steel V2A (AISI 304L) or V4A (AISI 316L)
  • Rubber: EPDM

Tightness:

  • gastight and watertight
  • radon-proof
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Tender specifications
