System cover

Cable seal with cold shrink technology

HSI90 D KS

Add to wish list

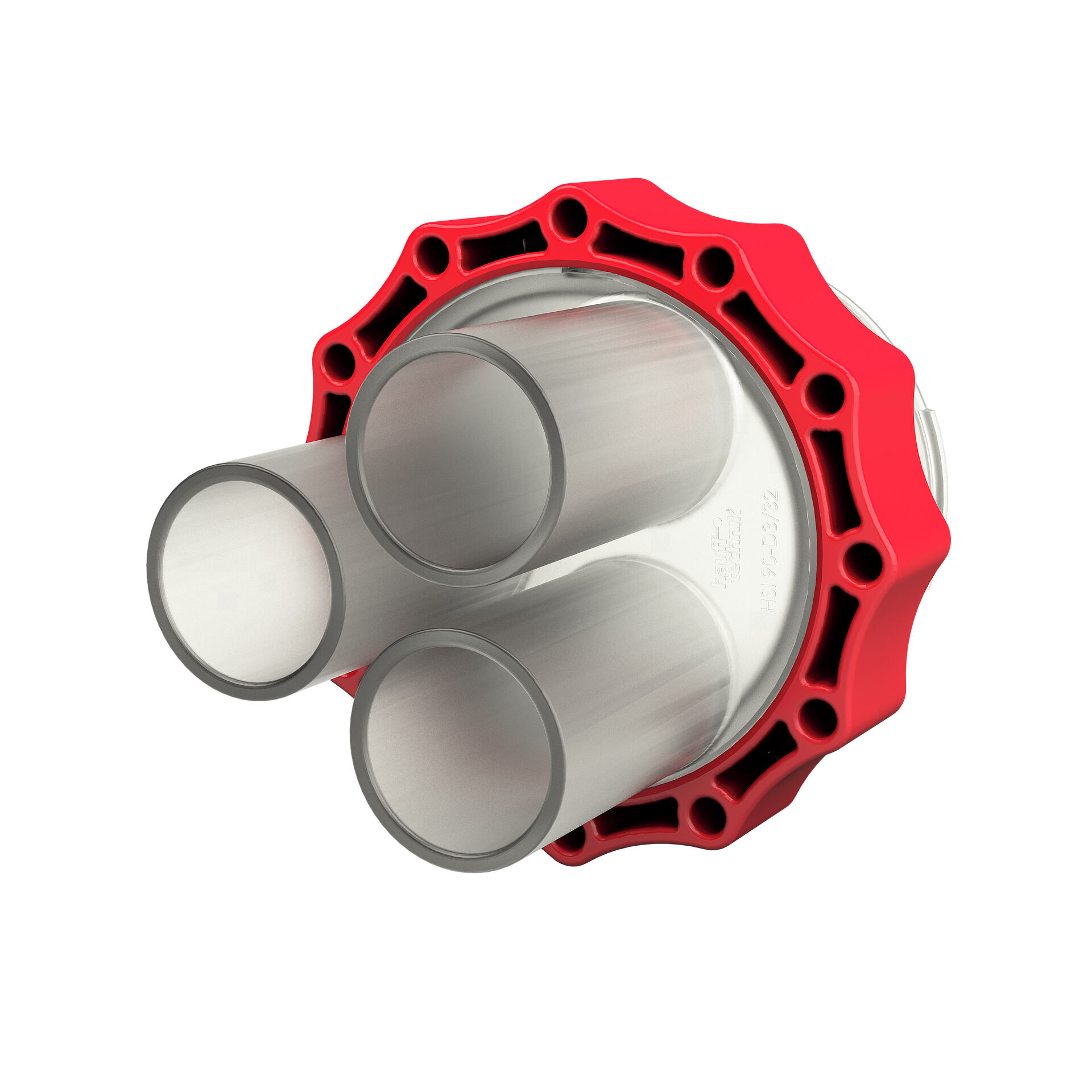

System cover - Cable seal with cold shrink technology

Mechanical fixing (bayonet) and sealing (clamping nut) act independently
Bayonet system with backstop and counter screw connection (prevents self-opening)

For use in wall insert and polymer flange HSI90. The cold shrink sleeves offer a wide range of applications and are shrunk onto the cables by the system cover socket without tools. Unused system cover sockets can be sealed with blind plugs.

System cover - Cable seal with cold shrink technology

Facts

Advantages:

Wide range of applications
Optimal shrink result due to centering straps
Gentle sealing
Tool-free shrink-fit method
Permanently elastic cold shrink tubing

Scope of delivery:

cold shrink sleeves
Centring strap for HSI 90-D1/75-KS

Properties:

The cold shrink-fit method is used on the outside of the building

Material:

System cover with socket: polycarbonate
Clamping nut: PC/PBT blend
Cold shrink tubing: EPDM
Centring strap: EPDM

Tightness:

gastight and watertight to 2.0 bar

Downloads

Installation instructions

HSI90 - Systemdeckelmontage (PDF, 4MB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Tender specifications
