Cable entries

System cover

Cable seal with heat shrink technology

HSI150 D WS

System cover - Cable seal with heat shrink technology
USP
  • Mechanical fixing (bayonet) and sealing (clamping nut) act independently
  • Bayonet system with backstop and counter screw connection (prevents self-opening)

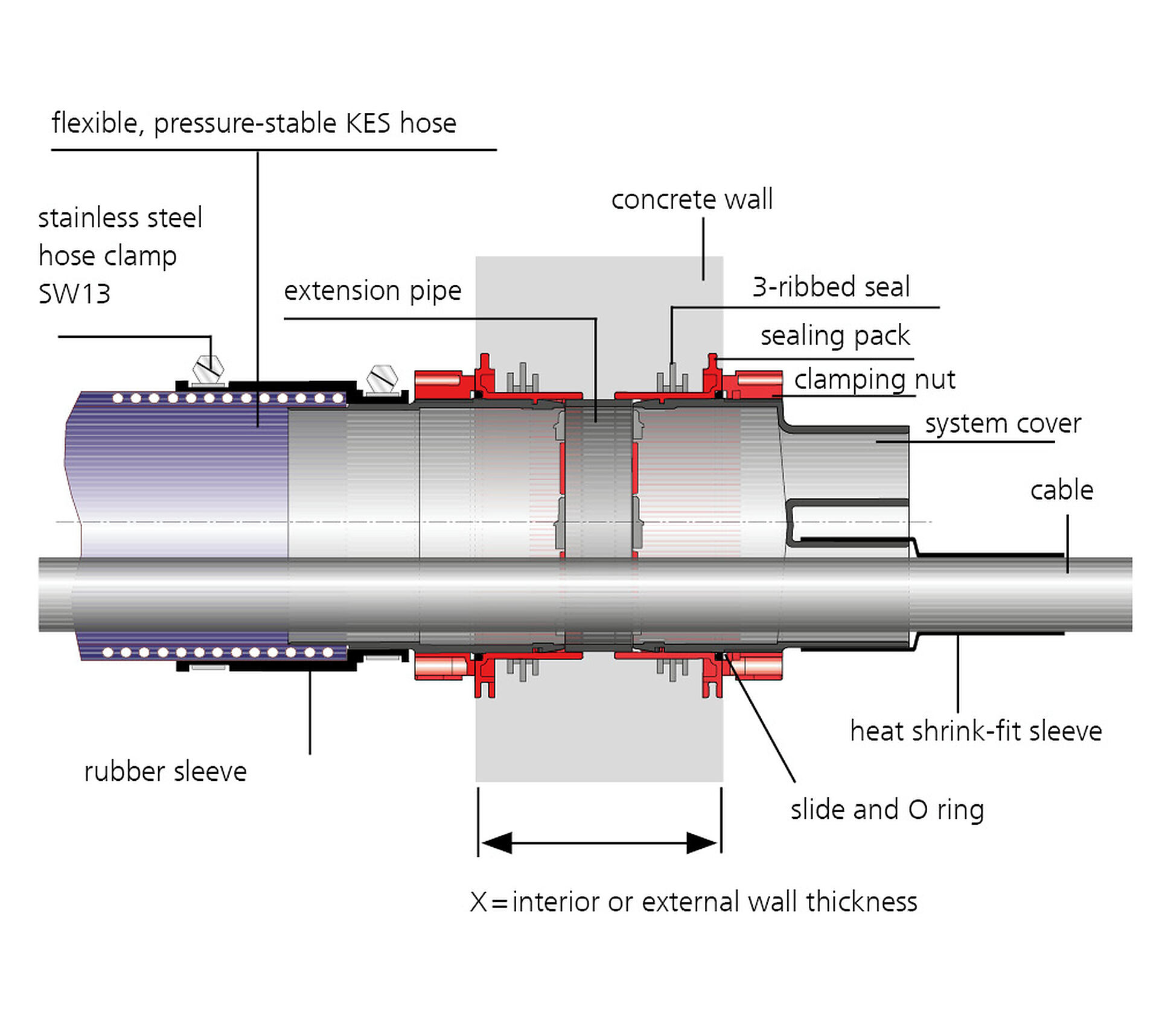

For use in wall insert and plastic flange HSI150. The thermal sleeves offer a wide range of applications and are heat-shrunk onto the cables using the system cover. Unused system cover sockets can be sealed with blind plugs.
System cover - Cable seal with heat shrink technology
Data is sent to YouTube when the videos are played. The data protection statements of YouTube and Hauff-Technik apply.

Facts

Advantages:

  • Wide range of applications
  • Optimal shrink result due to centering straps
  • Sealing to the cable with hot-melt adhesive in the thermal sleeve

Scope of delivery:

  • Thermal sleeves
  • Centring strap for HSI 150-D1/80 and HSI 150-D3/58

Properties:

  • FHRK-certified

Material:

  • System cover with socket: polycarbonate
  • Clamping nut: PC/PBT blend
  • Thermal sleeve with hot-melt adhesive: polyolefin
  • Centring strap: EPDM

Tightness:

  • gastight and watertight to 2.5 bar
