Building entries
Building entries  Building packagesFloor entry

Single-line XL building package

for buildings without a basement

ESG100 FUBO BHPXL10m

Add to wish listAdd to wish list
Single-line XL building package - for buildings without a basement
USP
  • duct system checked for pressure tightness
  • variable height adaptation to the finished floor level
XL building package in the form of a single-line building entry system suitable for gas, water or power supplies. For sealing larger pipe diameters for the media electricity, water or gas up to DN50, with flexible, pressure-tight and coverable empty pipe system.
Single-line XL building package - for buildings without a basement

Facts

Advantages:

  • Easy to position and align
  • Continuous duct connection possible

Scope of delivery:

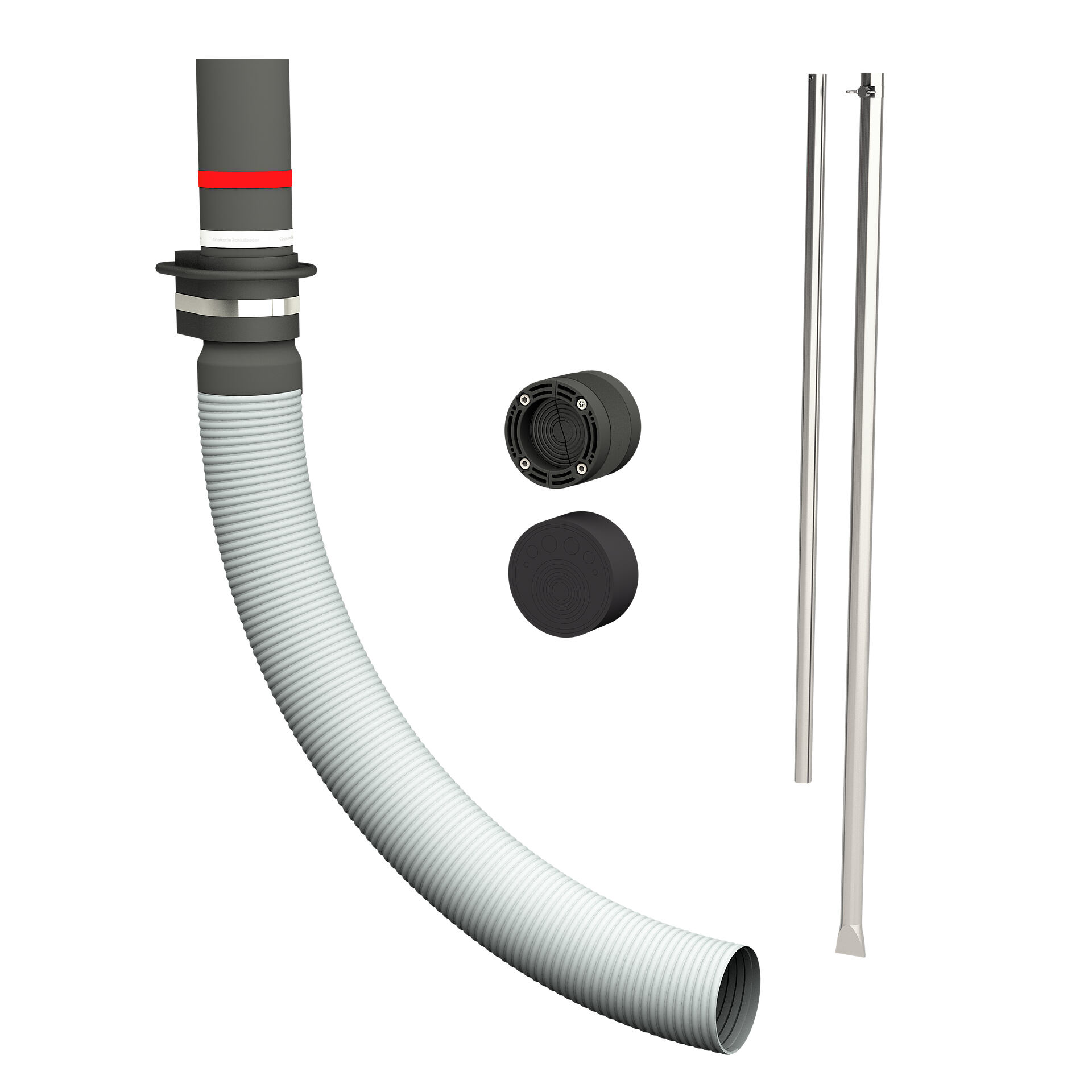

  • 1 piece of basic insert for floor slab: ESG100 FUBO, factory-connected with tested empty conduit system
  • 1 piece of installation fixture with water barrier flange
  • 1 piece of Spiral hose 14110/10000
  • 1 piece of sealing element for water or electricity: HRK100 SSG 1x18-65 b40 PAGF/A4/EPDM55
  • 1 piece of empty duct connection: ABEK95/102/110 1x18-65+2x16-20+2x12-16+2x5-10 b50

Dimensions:

  • Basic insert ID: 100 mm
  • Spiral hose: Øi: 110 mm
  • Sealing element: area of application: 1 electric cable with Øa 18-65 mm, sealing width: 40mm
  • Sealing cap: for duct Øi: 95/102/110 mm, for lines Øa: 1x18-65, 2x5-10, 2x12-16, 2x16-20

Properties:

  • DVGW-certified
  • variable height adaptation to the finished floor level

Application range:

  • Water exposure class DIN 18533: W1-E
  • Waterproof concrete stress class 1 and 2

Tightness:

  • gastight and watertight to 1.0 bar
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Tender specifications
